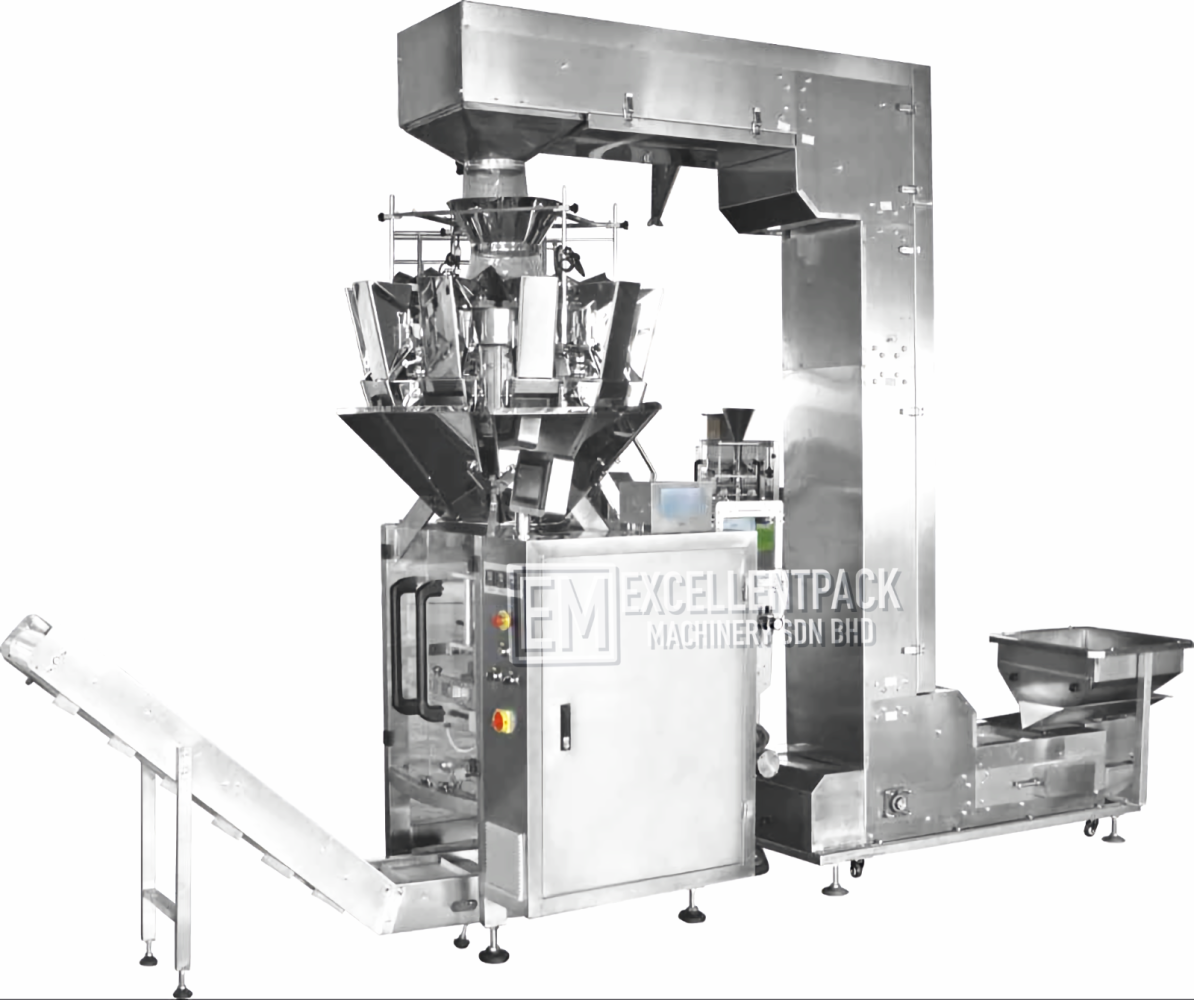

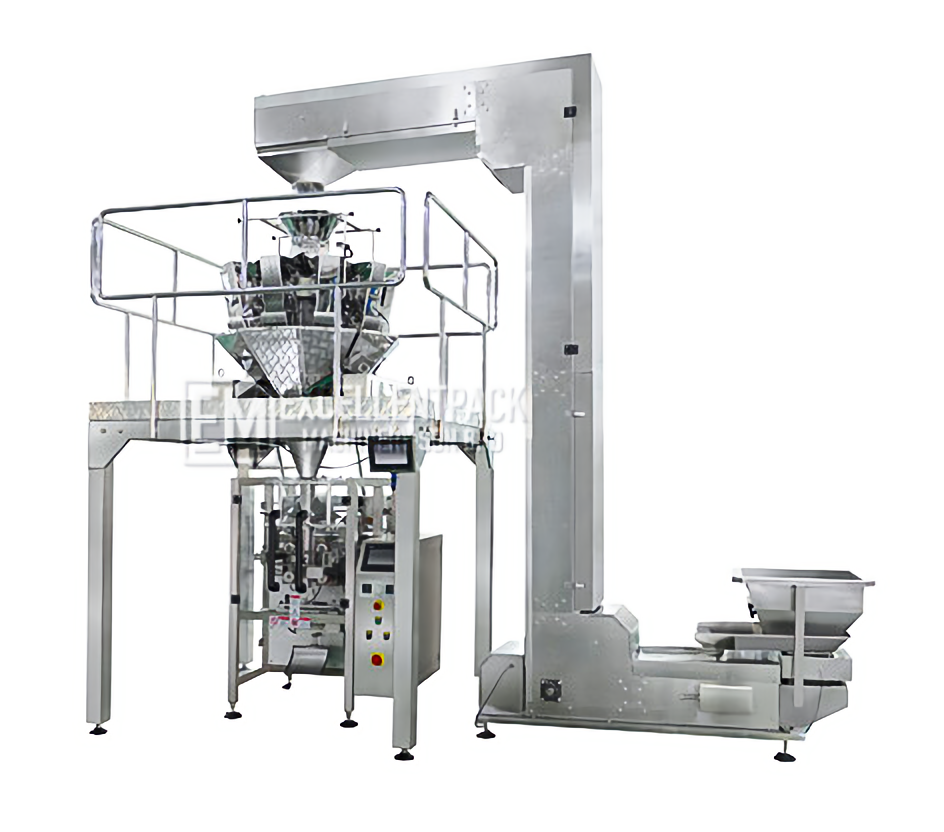

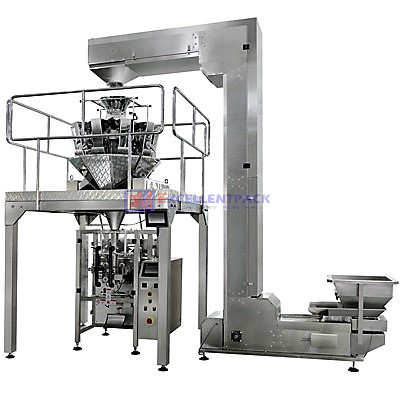

Multi Head Weigher System | Conveyor | Feeder | POUCH PACKAGING MACHINE
Category: POUCH PACKAGING MACHINE
Specifications
Details
Description
Machine Structure and Feature For Packaging Machine
- New design, compact, solid, reliable, stable, low noise, and high efficiency.
- Weigher as measuring system.
- PLC operation with touch screen control, easy to operate and efficient.
- Photoelectric sensor control system, accurate positioning.
- Servo motor to control film feeding system, higher accuracy, higher speed.
- Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.
- Digital temperature controller, easy to operate.
- Auto counting system, easy to monitor quantity of output.
- Automatic measuring, filling, sealing, and date code printing.
- Bag length is controlled on screen display.
- A few automatic alarming function, reduce wastage to minimum.
Machine Structure and Feature For 10 Head Weigher
- Multi-mouth feeder can dispense products into each linear feeder pan effectively.
- Specially designed U-shaped linear feeder pans can avoid leaking problem.
- Weigh hopper followed by a discharge will effectively prevent blockage.
- Mould making process and uniformed design standards contribute to better interchangeability for spare parts.
- Aluminum thickened middle standing enchances the strength of the machine, making the time for stabilizing hoppers shorter.
- Weighing type for material detection is available, which can make accurate control of feeding time and material thickness and ensure weighing accuracy.
Parts Included In System
- EM-420 machine
- 10 head wigher
- Z type bucket conveyor
- Vibration feeder
- Finished product conveyor
- Supporting platform (optional)
Optional Accessories
- Hole Punching Device
- Sachet Linking Device
- Easy Tear Device
Optional Equipment
- Check Weigher
- Metal Detector
- Air Compressor
Scope of Application
- Objects which required high precision measurement or fragile objects such as puffed food, snacks, chips, nuts, medicine, hardware parts, etc.
Form of Packaging
Pillow sealed bag or gusset bag.
| Packaging Machine | |||
| Model | EM - 420W | EM - 520W | EM - 720W |
| Product To Be Packed | Snack / Chips / Granules | Snack / Chips / Granules | Snack / Chips / Granules |
| Capacity | 10 - 20 bags / min | 10 - 20 bags / min | 10 - 20 bags / min |
| Packaging Weight | 100 - 1000g | 100 - 2000g | 150 - 4000g |
| Film Width | 420mm | 520mm | 720mm |
| Bag Length | 60 - 300mm | 80 - 350mm | 100 - 450mm |
| Bag Width | 60 - 200mm | 80 - 250mm | 100 - 350mm |
| Film Material | Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) | Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) | Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) |
| Power Sauce | 200V / 50hZ / 2.2kW | 220V / 50Hz / 3kW | 200V / 50Hz / 3.6 kW |
| Air Consumption | 0.8Mpa , 0.4m3 / min | 0.8Mpa , 0.4m3 / min | 0.8Mpa , 0.4m3 / min |
| Machine Weight | 450kg | 750kg | 900kg |
| Machine Dimension | L1260 * W1050 * H1560mm | L1500 * W1080 * H1500mm | L1700 * W1620 * H1800 |
| 10 Head Weigher | |
| Filling System | 10 Head |
| Measuring Range | 15 - 1500g (depend on product density) |
| Accuracy | ± 0.3 - 1% |
| Speed | max 60 dosing / min |
| Hopper Volume | 1.6L / 2.5L |
| Number of Setting | 50 |
| Power Source | 220V / 50Hz / 1.5kW |
| Machine Dimension | L1720 x W1100 x H1230 mm |
| Material | Stainless Steel 304 |
| Machine Weight | 480kg |
