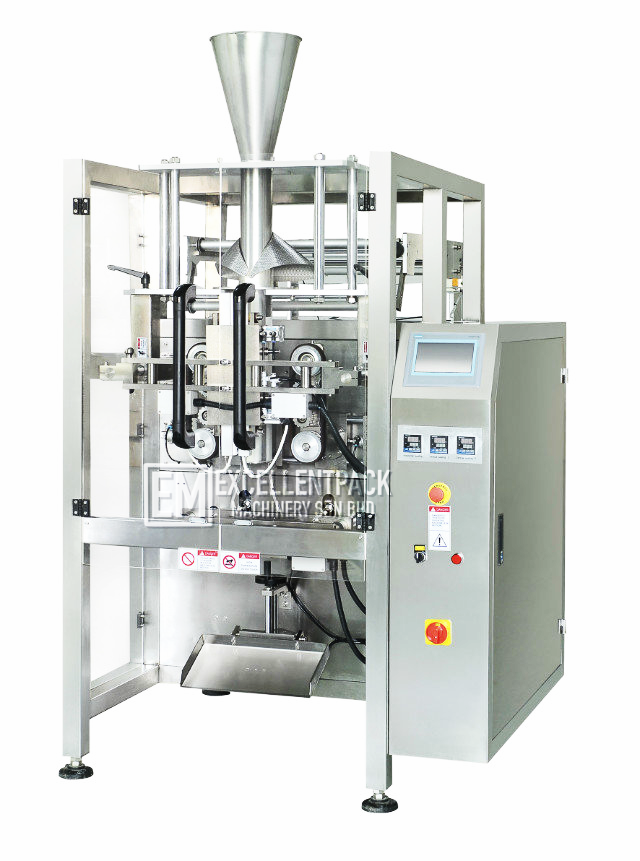

EM-720 | Pillow Sealed / Gusset Bag | POUCH PACKAGING MACHINE
Category: POUCH PACKAGING MACHINE
Specifications
Details
Description
Machine Structure and Feature
- New design, compact, solid, reliable, stable, low noise, and high efficiency.
- PLC operation with touch screen control, easy to operate and efficient.
- Photoelectric sensor control system, accurate positioning.
- Servo motor to control film feeding system, higher accuracy, higher speed.
- Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.
- Digital temperature controller, easy to operate.
- Auto counting system, easy to monitor quantity of output.
- Automatic measuring, filling, sealing, and date code printing.
- Bag length is controlled on screen display.
- A few automatic alarming function, reduce wastage to minimum.
Complementing Equipment:
The VFFS machine can be used in combination with:
Feeder :
- Screw Feeder
- Bucket Conveyor
- Z type Bucket Conveyor
- Vacuum Feeder
Filler :
- Volumetric Cup
- Piston Pump
- Auger
- Weigher
- Bucket Chain Conveyor
Optional Accessories
- Hole Punching Device
- Sachet Linking Device
- Easy Tear Device
Model | EM - 720 |
Capacity | 10 - 20 bags / min |
Packaging Weight | 150 - 4000g |
Film Width | Max 720mm |
Bag Length | 100 - 450mm |
Bag Width | 100 - 350mm |
Film Material | OPP / PE , OPP / CPP , PT / PE |
Power Source | 220V / 50Hz / 3.6kW |
Air Consumption | 0.8Mpa , 0.4m3 / min |
Machine Weight | 900kg |
Machine Dimension | L1700 * W1260 * H1800mm |
Form of Packaging
Pillow sealed bag or gusset bag.
